LFXTAL003000REEL
Manufacturer:
IQD Frequency Products
Mfr.Part #:
LFXTAL003000REEL
Datasheet:
Description:

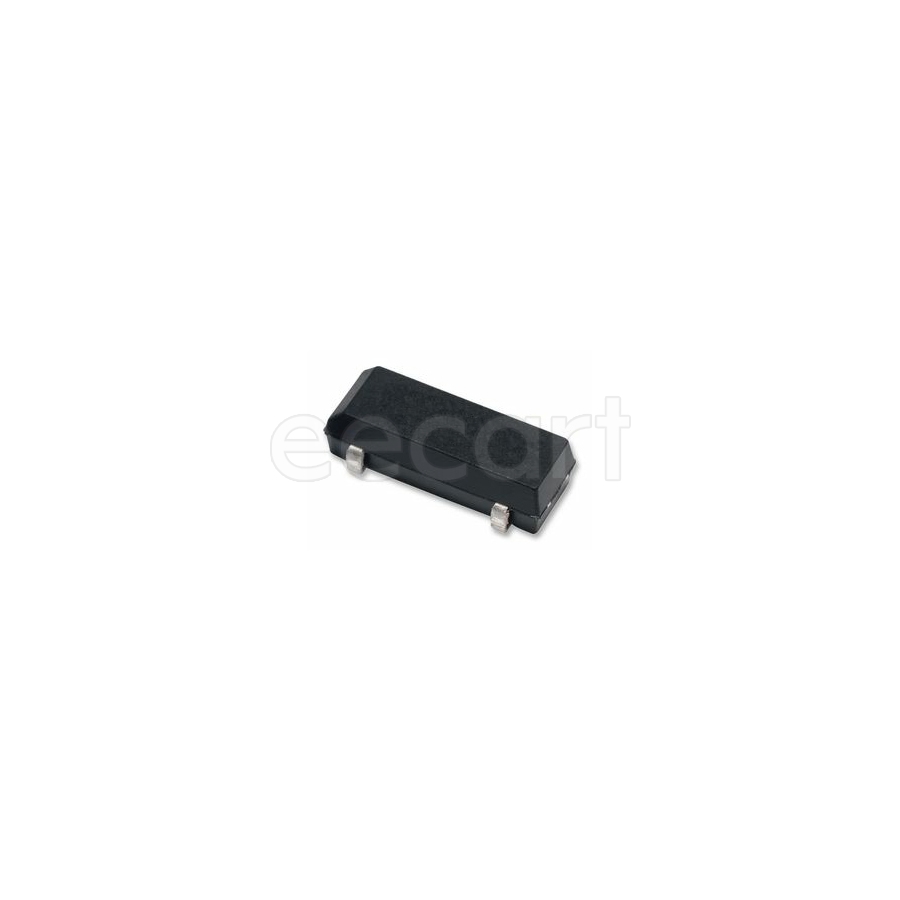

Crystals 8.70mmL×3.80mmW×2.50mmH SMD/SMT 32.768 kHz 12.5 pF
| Parameter | Value |
|---|---|
| Tolerance | 0.002 % |
| ESR (Equivalent Series Resistance) | 50 kΩ |
| Length | 8.7 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 4 |
| Height | 2.5 mm |
| Packaging | Reel |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Frequency | 32.768 kHz |
| Load Capacitance | 12.5 pF |
| Schedule B | 8541600080 |
| Frequency Tolerance | 20 ppm |
| Operating Mode | Fundamental |
| Height - Seated (Max) | 2.5 mm |
| Drive Level | 1 µW |
Stock: 61355
Distributors
pcbx
pcbxUnit Price$0.32573
Ext.Price$0.32573
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.32573 | $0.32573 |
| 10 | $0.27529 | $2.75290 |
| 25 | $0.26125 | $6.53125 |
| 50 | $0.24793 | $12.39650 |
| 100 | $0.23681 | $23.68100 |
| 300 | $0.23031 | $69.09300 |
| 500 | $0.22399 | $111.99500 |
| 1000 | $0.20665 | $206.65000 |
| 3000 | $0.19065 | $571.95000 |
| 5000 | $0.17184 | $859.20000 |
